Supermicro Twin Pro

The first and only servers on the market with onboard 12Gb/s SAS-3 controllers and NVMe storage support.

White Paper

Performance per watt with Twin Pro

Download (PDF)
1U-2U

Rackmount

2-4

Nodes

3-16

Drive bays

4-8

Processors

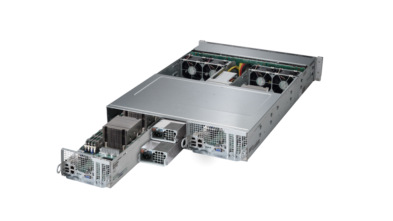

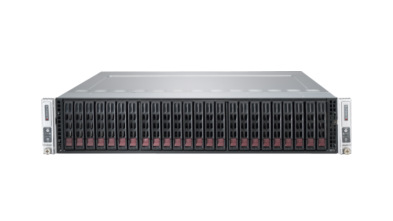

TwinPro and TwinPro2

When Supermicro launched 2U Twin , the industry took notice. To this day, 2U Twin's flexibility, combined with Thinkmate's world class support and superior availability remains one of the best options for companies that require servers with high performance, high density, efficient cooling, downtime-free maintenance and power, space and money savings.

The 2U TwinPro server builds on that winning strategy with support for the latest technology in networking and storage, bringing immediate improvements to existing storage and network hardware , and future-proofing your server for tomorrow's cloud, HPC and big data push.

TwinPro Features

  • Supports 24x 2.5" HDDs or SSDs (12 per node)
    Up to 8x 2.5" SAS3 (12Gbps) SSD (per node)
    Up to 4x 2.5" SATA (per node)
  • Supports 4x NVMe PCIe SSD (2 per node) or 2x PCIe 3.0 LP expansion slots plus 1x additional "0 slot" supper (per node)
  • Supports up to 1TB DDR3 1866MHz Memory (per node)
  • Optional support for up to 2 GPUs (1 per node)
  • Optional 10-Gigabit Ethernet Support via 2x 10GBase-T (RJ-45) (per node)
  • Optional FDR (56Gbps) or QDR (40Gbps) InfiniBand via 1x QSFP port (per node)

TwinPro2 Features

  • Supports 24x 2.5" HDDs or SSDs (6 per node)
    Up to 6x 2.5" SAS3 (12Gbps) SSD (per node)
    or 6x 2.5" SATA (per node)
  • Supports 4x PCIe 3.0 x16 LP expansion slots (1 per node) plus 1x additional "0 slot" supper (per node)
  • Supports up to 1TB DDR3 1866MHz Memory (per node)
  • Optional 10-Gigabit Ethernet Support via 2x 10GBase-T (RJ-45) (per node)
  • Optional FDR (56Gbps) or QDR (40Gbps) InfiniBand via 1x QSFP port (per node)
